Description
As graceful as a dancer and built like a heavy-weight, the Kubota R540 easily navigates crowded work sites and flexes its muscle wherever it’s needed. The wheel loader sports a hearty 51.1 horsepower and a breakout force of 7,761 pounds, all while keeping you comfortable in its spacious Cab. Climb on in-- it’s time for work.
Specifications
Manufacturer
Kubota
Model
R540
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Emission Certification
Tier 4 Final
Output (SAE J1995 gross) HP (kW)/rpm
50.9 (38) / 2400
Output (SAE J1349 net) HP (kW)/rpm
47.9 (35.7) / 2400
Displacement (cu. in)
160 (2615)
Transmission Type
Hydrostatic transmission
Auxiliary Hydraulics Flow Rate (GPM)
14.2 (53.8)
Auxiliary Hydraulic Pressure (psi)
2683 (18.5)
Standard Tire Size
12.5-18
Traveling Speed: High (mph)
12.4 (20.0)
Traveling Speed: Low (mph)
3.0 (4.8)
Traction Force (lbs)
6541 (29.1)
Front/Rear Axle Traction Lock
Diff-lock (both axles)
Articulation Angle (deg.)
40 (each direction)
Angle of Rear Frame Oscillation (deg.)
±8
Loader Clearance Circle ft in (mm)
13ft 8in (4175)
Turning Radius Track Circle ft in (mm)
11ft 11in (3620)
Brakes (Service)
Enclosed wet disc
Tipping Load (Full Turn)
5644 (2560)/5930 (2690) / 4365 (1980)/4586 (2080
Tipping Load (Straight)
6437 (2920)/6768 (3070) / 4960 (2250)/5202 (2360)
Rated Operating Capacity (ROC)
2822 (1280)/2965 (1345) / 2183 (990)/2293 (1040)
Standard Bucket Capacity (yd3)
0.85
Bucket Breakout Force (lbs)
8183 (36.4)
Lifting Capacity at Ground Level lbs (kN)
6767 (30.1)
Loader Raise / Lower Time (sec.)
6.5 / 4.5
Fuel Tank (gal)
18.5 (70)
Hydraulic System (gal)
15.1 (57)
Hydraulic Reservoir (gal)
10.3 (39)
Operating Weight lbs (kg)
9888 (4485) / 10285 (4665)
Hinge Pin Height
10ft 7in
Dump Height at Fully Raised Position
8ft 3in
Maximum Dump Angle
45 degrees
Reach Fully Raised at Maximum Dump Angle
2ft 6in
Steering Angle
40 degrees
Frame Oscillation Angle
8 degrees
Overall Length
17ft 8in (5395)
Overall Width
5ft 7in (1712)
Overall Height
8ft 1in (2453) / 8ft 2in (2473)
Ground Clearance (in)
13in (330)

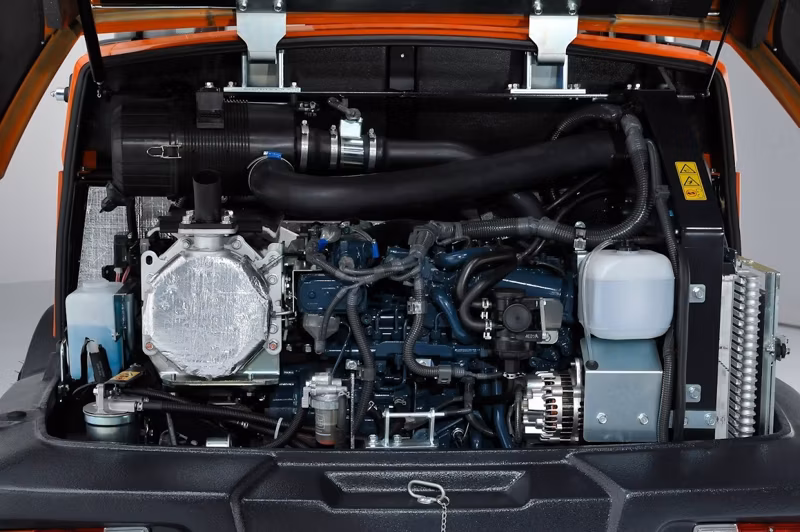

Engine
V2607
