Description

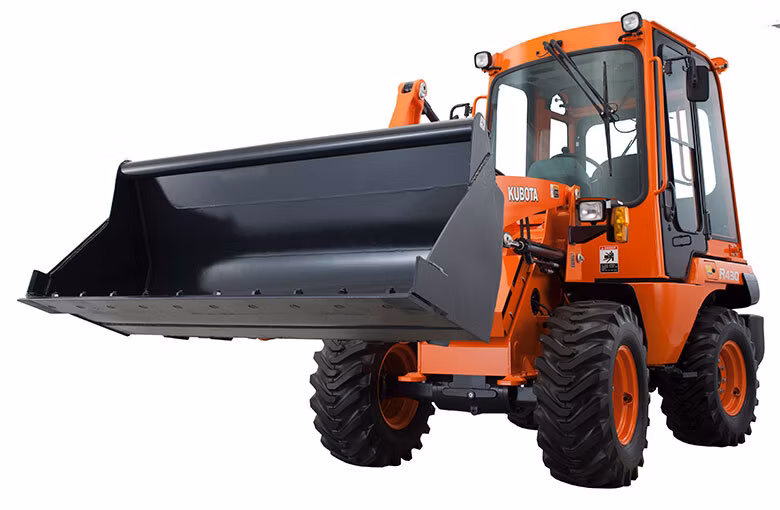

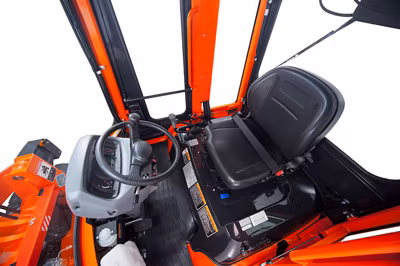

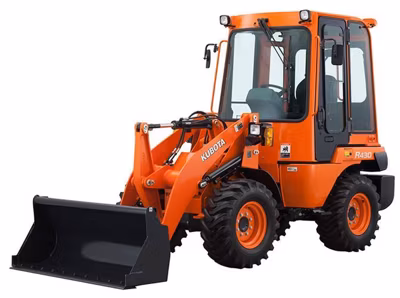

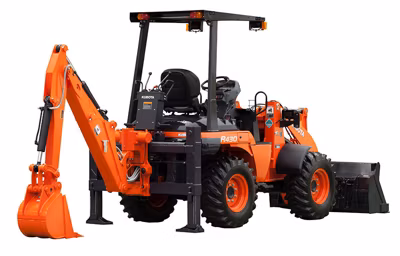

Compact design with impressive power allows the R430 to get the work done where larger loaders can't fit. The R430 also delivers big on comfort in every season with an available enclosed Cab featuring heat and A/C.
Specifications
Manufacturer
Kubota
Model
R430
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Transmission Type
Hydrostatic transmission
Max traction force lbs (kN)
5485 (24.4)
Front axle traction lock
Limited slip differential
Tipping load (straight)w/ bucket (15014397-1)lbs (kg)
5335 (2420) / 5743 (2605)
Tipping load (straight)w/ pallet forks (15014397-1)lbs (kg)
3494 (1585) / 3770 (1710)
Tipping load (full turn)w/ bucket (IS014397-1)lbs (kg)
4596 (2085) / 4949 (2245)
Tipping load (full turn)w/ pallet forks (15014397-1)lbs (kg)
3009 (1365) / 3251(1475)
Rated operating capacity (50% of tipping load) w/ bucket (13014397-1)lbs (kg)
2298 (1042) / 2474(1122)
Rated operating capacity (50% of tipping load) w/ pallet forks (IS014397-1/SAE J1197) lbs (kg)
1504 (682) / 1625(737)
Operating weight (Including operator weight @ 165 lbs)lbs (kg)
7758 (3519) / 8232(3734)
Lifting capacity at ground level lbs (kN)
3687 (16.4)
Breakout force lbs (kN)
5215 (23.2)
Standard bucket capacity yd3
0.5
Brakes Parking
Spring applied hydraulic released wet disc
Brakes Service
Enclosed wet disc
Loader raise / lower time sec.
4.4 / 3.3

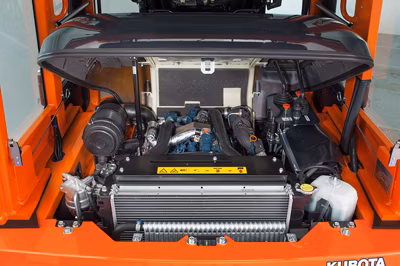

Model
D1803-CR-TIE4-WL5
Type of Rops / FOPS
CANOPY / Cab
Emission certification
Tier 4
Output (SAE J1995 gross) HP (kW)/rpm
47.6 (35.5) / 2600
Output (SAE J1349 net) HP (kW)/rpm
44.5 (33.2) / 2600
Displacement cu in (cc)
111 (1826)
Travel speed1 Low / High mph (km/h)
3.0 (4.8) / 12.4 (20.0)
Overall length ft in (mm)
14' 4" (4355)
Overall height ft in (mm)
8' 3" (2515)
Overall width (w/o bucket)ft in (mm)
4' 12" (1520)
Ground clearance in (mm)
11" (280)
Turning radius track circle ft in (mm)
10' 1" (3085)
Loader clearance circle ft in (mm)
12' 1" (3695)
Angle of rear frame oscillation deg.
±8
Articulation angle deg.
40 (each direction)
Auxiliary hydraulic pressure psi (Mpa)
2697 (18.6)
Hydraulic reservoir gal (l)
11.1 (42)
Hydraulic system gal (l)
15.3 (58)
Fuel tank gal (l)
14.3 (54)
Auxiliary hydraulic flow gpm (l/Min)
11.1 (42.1)
Tire size
12.5 / 70-16-8PR
