Description

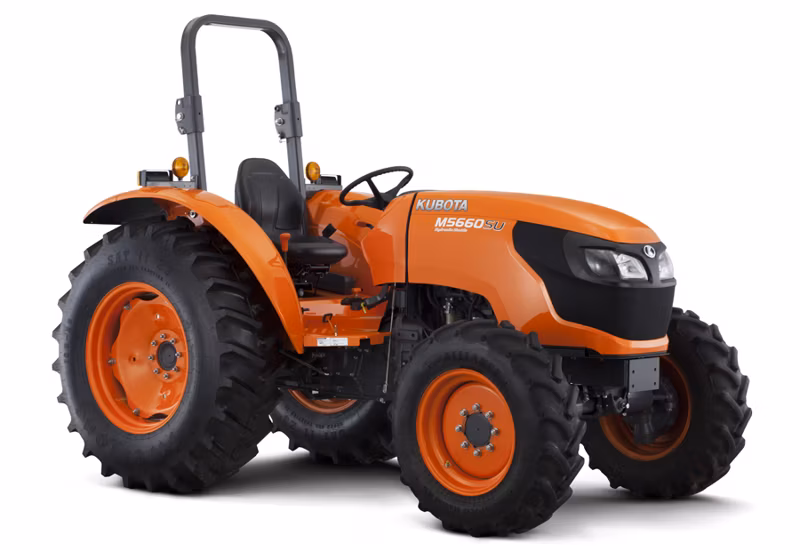

The M5660 Special Utility tractor is specifically designed for the farmer with 10-75 acres that requires a high performing tractor at an excellent value. The M5660SU redefines value by providing deluxe features such as hydraulic shuttle, standard rear remote valve and telescopic 3-point link ends.
Specifications
Manufacturer
Kubota
Model
M5660SUHD 4WD
Year
2025
Category
Tractors
Subcategory
Utility
Deck type
Semi-flat
Hood type / Pedal type
Full open, slanted, steel / Hanging
Overall height (w/Foldable Rops) in (mm)
95.3 (2420)
Overall width (Minimum) in (mm)
73.2 (1860)
PTO Speed
@540 rpm (540/540E opt)
PTO type
Rear standard (mechanical)Live-independent, hydraulic PTO with PTO brake, multi-plate wet clutch
Steering
Hydrostatic power steering
Tires Standard IVWD Front/Rear
8.3–24 / 14.9–28
Tires Standard 2WD Front/Rear
6.5–16 / 14.9–28
Transmission Brake
Mechanical wet disc
Transmission Differential lock
Rear standard (mechanical)
Transmission Main clutch
Multiple wet disk
Transmission Main gear shift (4 speeds)
Fully synchronized
Transmission No. of speeds
8F/8R
Transmission Shuttle
Hydraulic shuttle
Traveling speeds (w/std. 4WD Ag. tires)No. of speeds (at rated engine speed)(first/fifth)mph (km/h)forward/reverse
1.6 (2.6) 6.1 ( 9.7),1.6 (2.6) 6.2 ( 9.9)
Traveling speeds (w/std. 4WD Ag. tires)No. of speeds (at rated engine speed)(forth/eight)mph (km/h)forward/reverse
4.8 (7.7) 18.2 (29.3),4.9 (7.8) 18.6 (29.9)
Traveling speeds (w/std. 4WD Ag. tires)No. of speeds (at rated engine speed)(second/sixth)mph (km/h)forward/reverse
2.2 (3.6) 8.5 (13.7),2.3 (3.7) 8.7 (14.0)
Traveling speeds (w/std. 4WD Ag. tires)No. of speeds (at rated engine speed)(third/seventh)mph (km/h)forward/reverse
3.1 (5.1) 12.0 (19.2),3.2 (5.2) 12.2 (19.6)

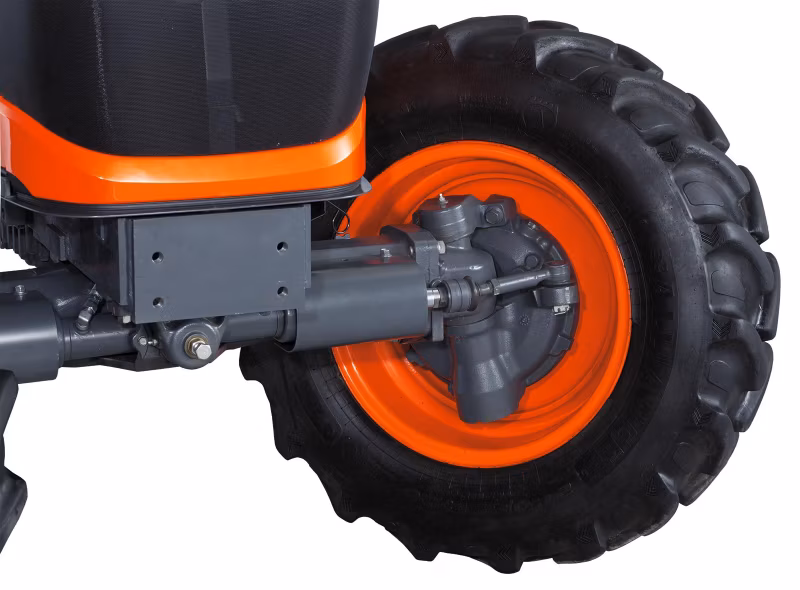

4WD drive system (4WD model)
Bevel gear type with 55 degree turning angle
Weight (with Rops)lbs (kg)
4387 (1990)
Air cleaner
Dry, dual element
Alternator Amp
45
Engine
V2403-CR-TE4
Engine net power (SAE J1349) HP (kW)
56 (41.8) @2600 rpm
Fuel tank capacity US gal (l )
17.7 (67)
No. of cylinders/Aspiration
4 / Turbocharged
PTO power (at rated engine RPM) HP (kW)
50 (37.3)
Rated Engine HP (97/68/EC) HP (kW)
57.9 (43.2) @2600 rpm
Total displacement cu in (cc)
148.5 (2434)
Type (Make: KUBOTA)
4 cylinder in-line, Common Rail Sytem, direct injection
Min ground clearance in (mm)
16.3 (415)
Overall length in (mm)
136 (3455)
Tread widthFront in (mm)
51.2, 55.1 (1300,1400)
treadwidthRear in (mm)
52.0, 67.7 (1320, 1720)
Turning radius (w/o brake)ft (m)
12.8 (3.9)
Wheelbase in (mm)
80.7 (2050)
Control system
Position
Hydraulic Pump capacity (main) gpm ( l /min)
10.6 (40.2)
Lift capacity at 24 in behind lift point lbs (kg)
3307 (1500)
No. of remote valves
1 (2nd, 3rd & flow control valve optional)
3-point hitch
Category I & II
