Description
The M6 Series tractor line offers premium features in a deluxe mid-range utility tractor package. Designed with hay, cattle and ranchers in mind, the M6 tractors are packed full of power, comfort and the versatility to accomplish any task thrown at it. With four models to choose from – ranging from 97 to 133 net engine horsepower – the M6 Series has the tractor to fit your operation’s needs.
Specifications
Manufacturer
Kubota
Model
M6-111
Year
2025
Category
Tractors
Subcategory
Utility
PTO Type
Live-independent PTO, hydraulically operated wet clutch, w/ PTO brake
PTO speed (interchangeable)
540 rpm (6 splines) /1000 rpm (21 splines) (two shafts)
Lift capacity at 24 in behind lift point SAE lbs (kg)
6834 (3100), optional 9447 (4285)
Lift capacity at 24 in behind lift point CECD lbs (kg)
5732 (2600), optional 7496 (3400)
Weight (w/ standard tire)lbs (kg)
9789 (4440)

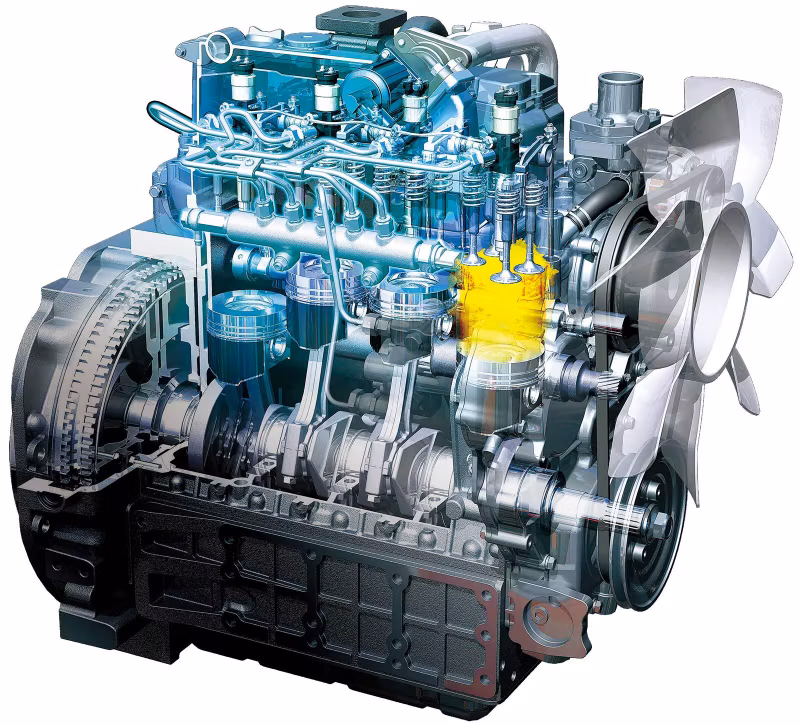

Engine
V3800 - TI - CRS
Type (Make: Kubota)
Common Rail System, direct injection, liquid-cooled
Engine power at rated rpm (97/68/EC) HP (kW)
114.1 (85.1)
Engine net power at rated rpm (ECE-R24) HP (kW)
106.8 (79.7)
PTO power at engine rated rpm HP (kW)
92(69)
Total displacement cu in (cc)
230 (3769)
Bore x stroke in (mm)
3.94 x 4.72 (100 x 120)
Rated speed rpm
2600
Fuel tank capacity gal (l)
50.2 (190)
DEF tank capacity gal (l)
5.3 (20)
Alternator / Battery capacity
130 Amp/12 V, 100 Ah at 20 hours, 900 CCA
Air cleaner
8" Dry, dual-element
Muffler
Under-hood, corner-post exhaust pipe
No. of speeds (option)
Intelli-Shift transmission 24F/24R (32F/32R w/ creep)
Main gear shift
8-speed powershift
Range gear shift
3-speed mechanical shift with clutch button
Shuttle shift
Microprocessor-controlled electro-hydraulic shuttle
Optional creep speed
0.12 -0.45 mph
Max traveling speed mph (km/h)
23.4 (37.7)
Main clutch type / diameter in (mm)
Multiple wet disc. electro-hydraulically operated / 5.2 (133)
Brake type
Hydraulically operated wet disc brakes, with automatic front axle engagement (4WD)
No. of cylinders / Aspiration
4 / Turbocharger with intercooler
Wheelbase in (mm)
95.9 (2435)
Overall width (minimum tread) in (mm)
82.7 (2100)
Overall length in (mm)
165.4 (4200)
Overall height in (mm)
111.8 (2840)
Crop clearance in (mm)
19.5 (495)
Turning radius (w/o brake)ft (m)
13.1 (4.0)*3
Tread width Front in (mm)
62.2 - 66.1 (1580 -1680)
Tread width Rear in (mm)
60.2- 80.3 (1530 - 2040)
Pump output (hitch & remote)gpm (l /Min)
18.7 (70.9)
Pump output (power steering)gpm (l /Min)
16.0 (60.4)
3-point hitch (Category II)
Telescopic lower link ends, telescopic stabilizers
Control system
Electronic draft control, lower link sensing, left fender-mounted hitch switch standard
Remote valves
2 standard (3rd, 4th optional) w/ built-in flow control
Steering
Hydrostatic power steering
Front wheel drive system
Bevel gear type, on-the-go electro-hydraulic engagement, w/ electro-hydraulic front differential lock
Operator area
ISO-mounted flat deck, hanging pedals, tilt & telescopic wheel
Seat (air ride)
Swivel, reclining, full adjustment (height. weight, fore & aft), arm rests, retractable seat belt
Lighting
2 headlights, 4 front working lights, 2 rear working lights, 2 tail lights, 4 safety flashers
Standard front tire
13.6 R24
Standard rear tire
18.4 R34
