Description
The MX Series is not only affordable but also provides year round comfort with the new CAB or ROPS models. Versatility is unmatched; available in either 2WD or 4WD models and either Gear or HST Transmission variations – with choices between 55.5 HP to 63.4 gross horsepower – the MX Series tractors can tackle just about any job that comes their way. This mid-size tractor is versatile enough to handle almost any work site or application. #1 rated tractor brand for durability and owner experience in the U.S.
Specifications
Manufacturer
Kubota
Model
MX5400 Gear-Drive Transmission 2WD
Year
2025
Category
Tractors
Subcategory
Economy Utility
Speed
@540 rpm
PTO type
Live independent, hydraulic PTO with PTO brake, wet clutch
No of speeds (at rated engine speed), Forward, First, Fifth, mph(km/h)
1.1, (1.7), 5.1, (8.2)
No of speed (at rated engine speed), Forward,Second, Sixth
1.5,(2.4),7.2,(11.6)
No of speed (at rated engine speed), Forward,Third, Seventh
2.4,(3.9),11.7,(18.9)
No of speed (at rated engine speed), Forward,Fourth, Eight
3.6,(5.8),17.3,(27.9)
No of speeds (at rated engine speed), Reverse, First, Fifth, mph(km/h)
1.0, (1.6), 4.7, (7.5)
No of speed (at rated engine speed), Reverse,Second, Sixth
1.4,(2.2),6.6,(10.7)
No of speed (at rated engine speed), Reverse,Third, Seventh
2.2,(3.6),10.7,(17.3)
No of speed (at rated engine speed), Reverse,Fourth, Eight
3.3,(5.3),15.9,(25.6)
Steering
Hydrostatic Power Steering
Hood type/Pedal type
Full open hood / Hanging pedals
Deck Type
Flat
Weight (with ROPS), lbs(kg)
3474(1576)
Overall length (w/o 3P), in (mm)
127.8(3245)
Overall height(w/Foldable ROPS/CAB), in (mm)
95.7(2430) / 92.7 (2355)
Overall width (Minimum) in (mm)
69.7 (1770)
Wheelbase in (mm)
74.6(1895)
Min ground clearance in (mm)
15.2(385)
Tread width Front in (mm)
50.4-62.2(1280-1580)
Tread width Rear in (mm)
54.1-58.7(1375-1490)
Truning radius(w/break) ft(m)
8.5(2.6)

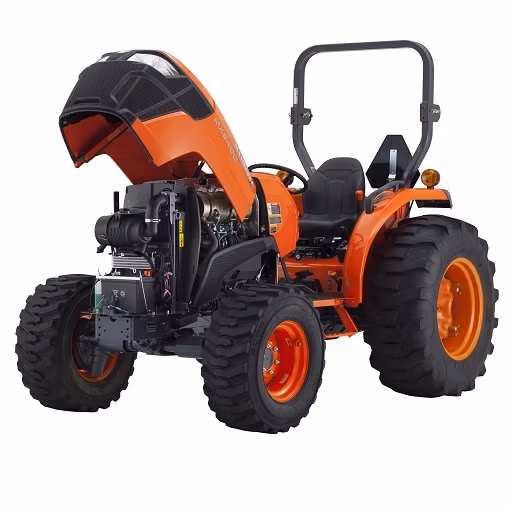

Engine
V2403CR-T
Type (Make: KUBOTA)
CRS, direct injection, liquid cooled diesel
Engine gross SAE J 1995 power , HP (KW)
55.5(41.4)
Engine net SAE J 1349 power , HP (KW)
53.0(39.5)
PTO Power , HP(kw)
46.5(34.7)
No of cylinders/Aspiration
4 / Turbocharged
Total diplacment , cuin(cm3)
148.6(2434)
Rated Speed, rpm
2700
Fuel Tank Capacity, US gal(L)
11.9(45)
Air cleaner
Dry-dual element
Alternator (ROPS / CAB), Amp
45/60
No of speed
8F/8R
Main gear shift ( 4 speed) (ROPS / CAB)
Partially synchronized (3rd & 4th)
Shuttle
Synchronized
Main clutch
Dry single plate
Break
Mechanical wet disc
Differential lock
Rear standard (mechanical)
Pump capacity (main), gpm (L.min)
9.5(35.8)
Power steering, gpm (L.min)
4.9(18.6)
3-point hitch
Category I &II
Control System, lbs(kg)
2310(1050)
