Description

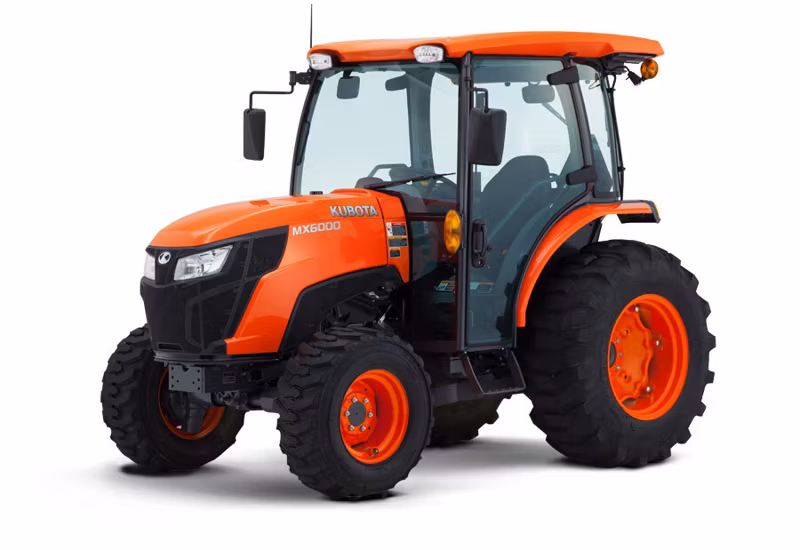

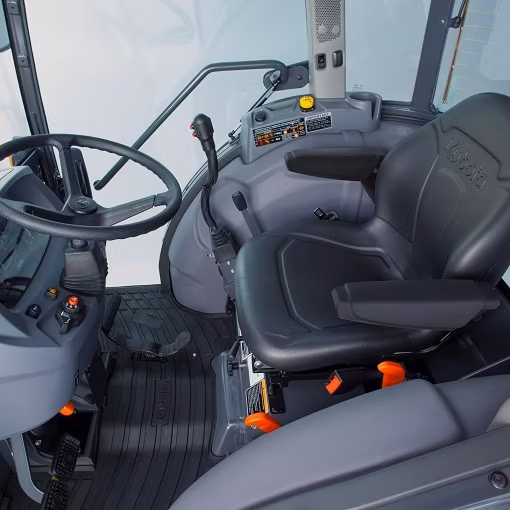

The new MX Series is not only affordable but also provides year round comfort with the new Cab or Rops models. Versatility is unmatched; available in either 2WD or 4WD models and either Gear or HST Transmission variations – with choices between 55.5 HP to 63.4 gross horsepower – the new MX Series tractors can tackle just about any job that comes their way. This mid-size tractor is versatile enough to handle almost any work site or application.
Specifications
Manufacturer
Kubota
Model
MX5400 HST 4WD
Year
2025
Category
Tractors
Subcategory
Economy Utility
4wd Drive System(4wd Model)
Bevel Gear Type
Speed
@540 rpm
PTO Type
Live independent, hydraulic PTO with PTO break, wet clutch
Standard(1), Front/Rear
9.5-16/14.9-26
No. of speed (at rated engine speed), Forward, First, Fifth, mph(km/h)
L:0 to 4.2(6.7)
No. of speed (at rated engine speed), Forward,Second, Sixth
M:0 to 8.1 (13.0)
No. of speed (at rated engine speed), Forward,Third, Seventh
H:0 to 17.7 (28.5)
Steering
Hydrostatic Power Steering
Hood type/Pedal type
Full open hood / Hanging pedals
Deck Type
Flat
Weight (with Rops), lbs(kg)
3734(1694)
Weight (with Cab), lbs(kg)
4268(1936)
Engine
V2403CR-T
Type (Make: KUBOTA)
CRS, direct injection, liquid cooled diesel
Engine gross SAE J 1995 power , HP (KW)
57.0(42.5)
Engine net SAE J 1349 power , HP (KW)
53.8(40.1)
PTO Power , HP(kw)
46.5(34.7)
No. of cylinders/Aspiration
4 / Turbocharged
Total diplacment , cu in(cm3)
148.6(2434)
Rated Speed, rpm
2700
Fuel Tank Capacity, US gal(L)
11.9(45)
Air cleaner
Dry-dual element
Alternator (Rops / Cab), Amp
45/60
No. of speed
3-range speed
Shuttle
Hydrostatic Pedal Operation
Main clutch
No Clutch
Differential lock
Rear standard (mechnical)
Break
Mechanical wet disc
Overall length (w/o 3P), in(mm)
125.8(3195)
Overall height(w/Foldable Rops/Cab), in(mm)
95.7(2430) / 92.7 (2355)
Overall width(Minimum), in(mm)
69.7 (1770)
Wheelbase ,in (mm)
74.6(1895)
Min ground clearance , in (mm)
15.2(385)
Tread width Front , in (mm)
52.2(1325)
Tread width Rear, in (mm)
54.1-58.7(1375-1490)
Truning radius(w/break), ft(m)
8.9(2.7)
Pump capacity (main), gpm (L.min)
9.5(35.8)
Power steering, gpm (L.min)
4.9(18.6)
3-point hitch
Category I &II
Control System
Position (std), Draft (opt)
Control System, lbs(kg)
2310(1050)
No. of remote valves
Maximum 3 (opt)
