Description

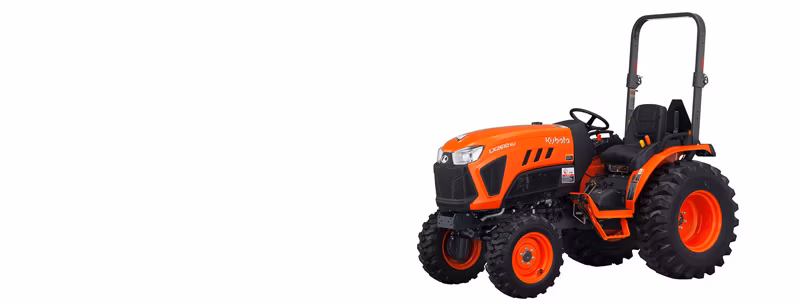

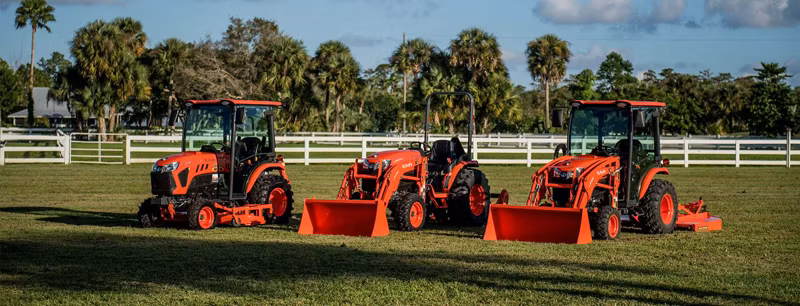

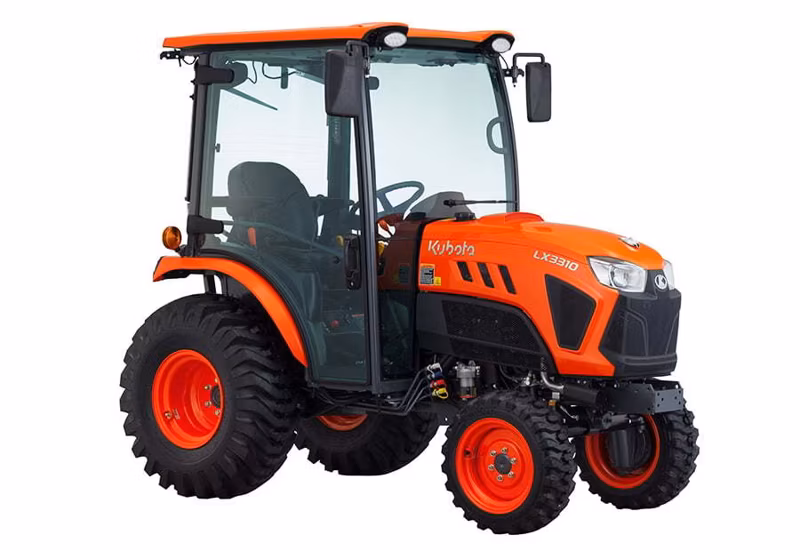

Coming Spring OF 2020 Kubota's all new LX Series is the answer to having quality, comfort, and versatility. The LX is available in a 4WD in both a Rops and Cab with an HST Transmission – with choices between 24.8 to 30.8 gross engine horsepower. For a more affordable option, the LX Series also offers the LX2610SU model packed with both value and deluxe quality features.
Specifications
Manufacturer
Kubota
Model
LX2610HSD
Year
2025
Category
Tractors
Subcategory
Compact
Fuel tank , gal ( L)
7.1 (27.0)
Cooling system , qts. ( L)
4.5 (4.3)
Engine oil , qts. ( L)
4.2 (4.0)
Transmission case ,gal ( L)
4.0 (15)
Final drive
Spur gear
Brake
Multi-plate wet disc
Type One
Independent
Rear , rpm
540
Front , R1
7-12
Front , R4 One
23ｘ8.50-14 / 25ｘ8.50-14
Front , R14 Two
23ｘ8.50-12 / 25ｘ8.50-14

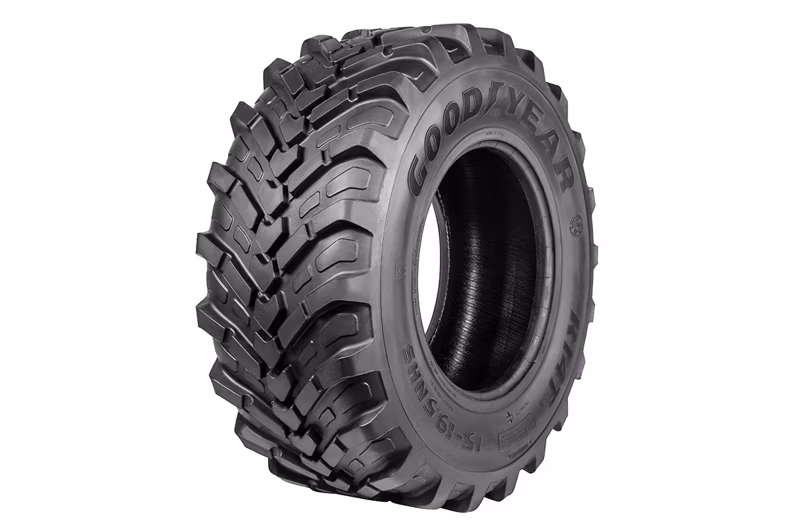

Rear , R1
12.4 -16
Rear , R4 One
12.4 -16 / 15-19.5
Rear ,R14 Two
14 -17.5 / 15-19.5
Forward (R1) , mph (km/h)
0-11.2 (0-18.0)
Reverse (R1), mph (km/h)
0-8.4 (0-13.5)
Weight , lbs (kg)
1786 (810)
Mid ,rpm
2500
PTO horsepower, HP (kW)
19.5 (14.5)
Engine gross horsepower,HP (kW)
24.8 (18.5)
Rated RPM, rpm
24.8 (18.5)
Bore and stroke , in (mm)
ø3.1 × 3.5 (ø78 × 88)

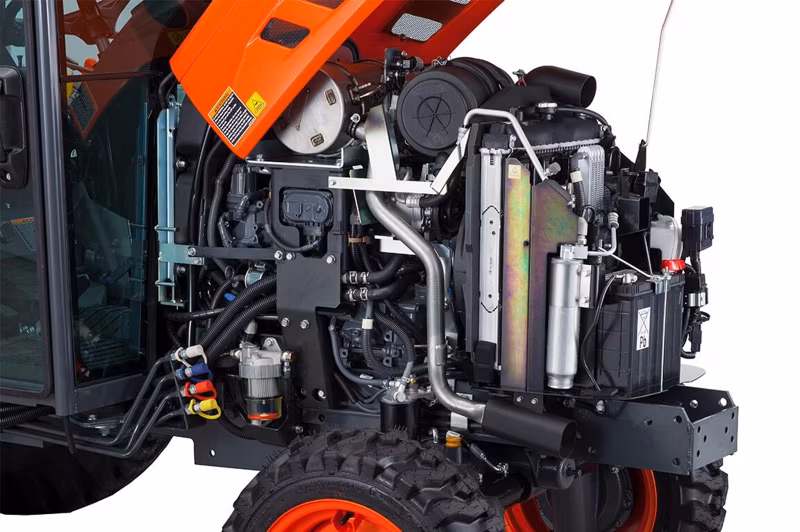

Type
E-TVCS, liquid cooled, 3 -cylinder diesel
Make, Model
D1305-E4-D36-R
Displacement , cu in (cc)
77.0 (1261)
Air cleaner
4.5 inch Dual paper element
Lubrication
Forced lubrication
Cooling system
Pressurized radiator
Radiator fan
Radial air flow
Transmission
HST (3 ranges)
Overall length (w/o 3P) , in (mm)
101.2 (2570)
Overall width (Min tread) ,
53.7 (1365)
Overall height , in (mm)
88.4 (2245)
Wheelbase , in (mm)
65.6 (1666)
Ground clearance , in (mm)
14.6 (370)
Turning radius with brake , feet (m)
6.9 (2.1)
Type
Open center
Pump
Dual pump
Total pump output , gpm (L /Min)
8.7 (33.1)
Hydraulic outlet
Rear outlet
3-point hitch
Category I
Hydraulic control system
Position control valve
Lift capacity at lift point , lbs (kg)
2139 (970)
Lift capacity 24" behind , LPlbs (kg)
1676 (760)
Steering
Hydraulic power steering
