Description

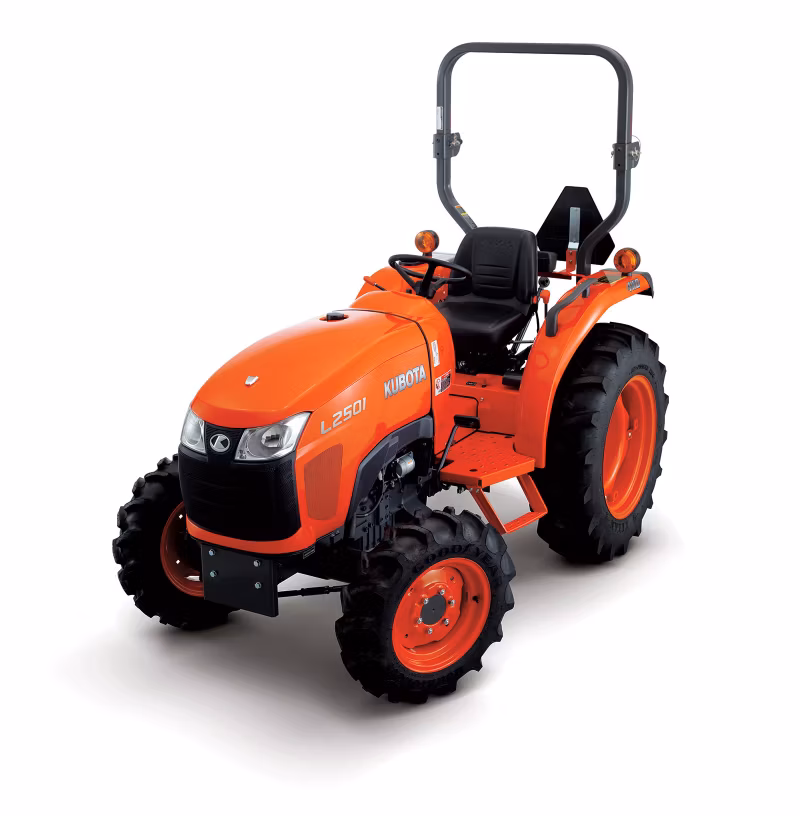

Meet your new favorite piece of equipment: Kubota's Standard L Series takes power and performance to new heights. With a valuable combination of horsepower and high-quality construction, this feature-packed compact tractor is perfect for small property owners – starting with how much you’ll look forward to using it every day.
Specifications
Manufacturer
Kubota
Model
L2501 Gear Drive Transmission-2WD
Year
2025
Category
Tractors
Subcategory
Compact
PTO Rear PTO type
Transmission driven with overrunning clutch
PTO PTO/Engine speed
540/1910
Weight (with Rops) lbs (kg)
2425(1100)
Type
Direct injection. Vertical, Water-Cooled 4 cycle diesel
Engine gross power HP (kW)
24.8 (18.5)
Engine net power HP (kW)
23.9 (17.8)
PTO power HP (kW)
20.5 (15.3)
No. of cylinders
3
Bore & stroke in (mm)
3.4 x 3.6 (87 x 92.4)
Total displacement cu in (cm3)
100.47 (1647)
Rated speed rpm
2200
Battery
12V. RC: 123 min, CCA: 490 A
Alternator
12V, 40A
Fuel tank capacity US gal (l)
10.0 (38.0)
Transmission
Gear shift, 8 forward and 4 reverse
Steering
Integral type power steering
Brake
Wet disc type
Clutch
Dry type single stage
Traveling speed with standard AG tires
Forward 0.9 (1.4) - 10.7 (17.3),Reverse 1.2 (1.9) - 3.9 (6.2)
Overall length (w/o 3P) in (mm)
110.6(2810)
Overall width (Min tread)in (mm)
55.1(1400)
Overall height (w/Foldable Rops)in (mm)
91.7(2330)
Min ground clearance in (mm)
13.6(345)
Tread Front tire in (mm)
43.8(1115) /47.1(1195) /50.8(1290)
Tread Rear tire in (mm)
41.3(1050)
Min turning radius (w/brake. 4WD disengaged) feet (m)
7.9(2.4)
Wheelbase in (mm)
63.3(1610)
Lift control type
Position control
3-point hitch
Category I
Pump capacity (PS) gpm (l/min)
3.13 (11.8)
Litt capacity at lift points lbs (kg)
1918 (870)
Litt capacity 24 in behind lift points lbs (kg)
1389 (630)
System pressure PSI (MPa)
2205 (15.2)
Pump capacity (main) gpm (l/min)
5.15 (19.5)
Tire size AG Standard Front/Rear
5. 15/11.2 - 24
