Description

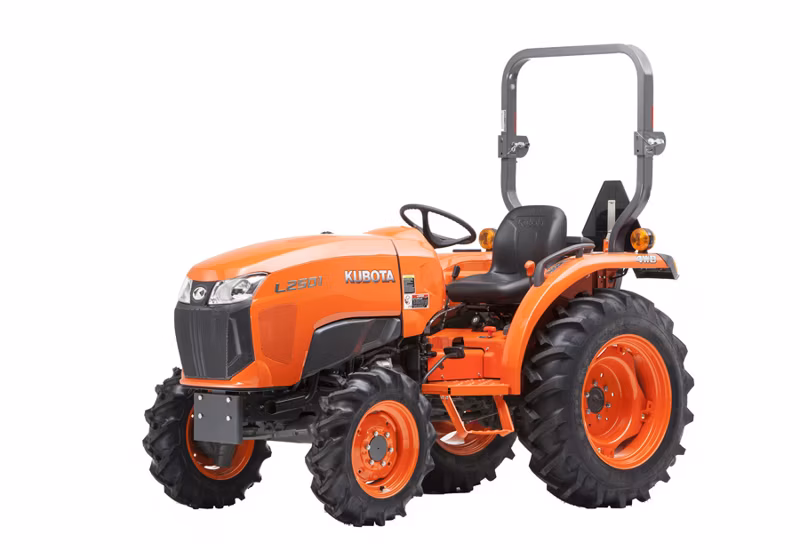

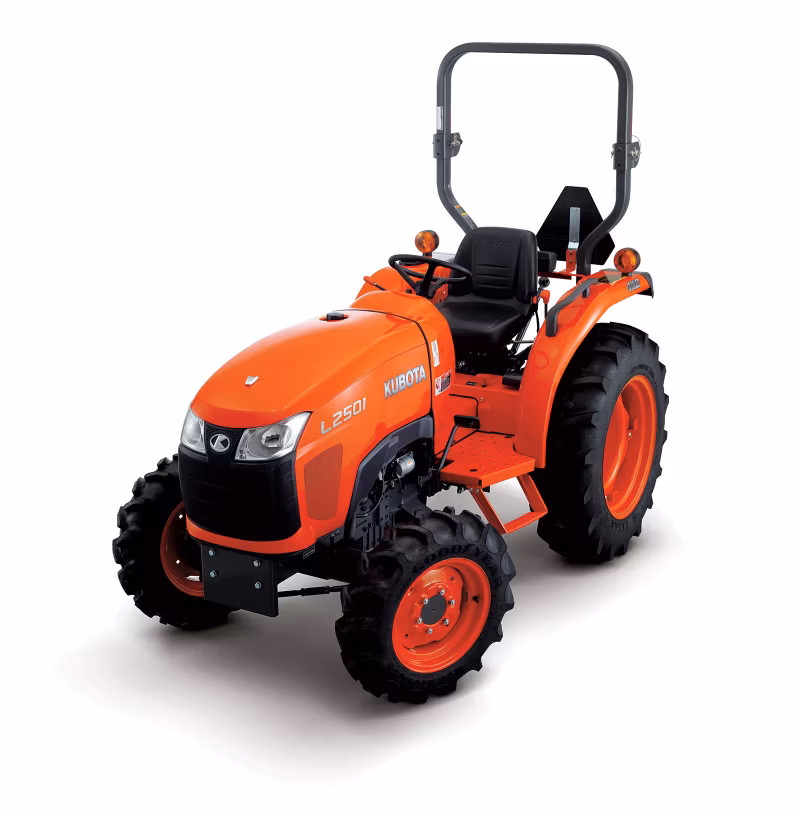

Meet your new favorite piece of equipment: Kubota's Standard L Series takes power and performance to new heights. With a valuable combination of horsepower and high-quality construction, this feature-packed compact tractor is perfect for small property owners – starting with how much you’ll look forward to using it every day.
Specifications
Manufacturer
Kubota
Model
L3901-HST 4WD
Year
2025
Category
Tractors
Subcategory
Compact
PTO Rear PTO type
Live - with overrunning clutch
PTO PTO/Engine speed
540/2580
Weight (with Rops)lbs (kg)
2778(1260)
Type
Direct injection. Vertical, Water-Cooled 4 cycle diesel
Engine gross power HP (kW)
37.5 (28.0)
Engine net power HP (kW)
36.3 (27.1)
PTO power HP (kW)
30.6 (22.8)
No. of cylinders
3
Bore & stroke in (mm)
3.4 x 4.0 (87 x 102.4)
Total displacement cu in (cm3)
111.4 (1826)
Rated speed rpm
2700
Battery
12V. RC: 110 min, CCA: 580 A
Alternator
12V, 40A
Fuel tank capacity US gal (l)
11.1 (42)
Transmission
Hydrostatic transmission, 3 range speed
Steering
Integral type power steering
Brake
Mechanical, Wet disc type
Clutch
Dry single
Traveling speed with standard AG tires
Forward 0.0(0.0) - 14.1 (22.7) Reverse 0.0(0.0) - 12.7 (20.5)
Overall length (w/o 3P) in (mm)
107.9(2740)
Overall width (Min tread)in (mm)
55.1(1400)
Overall height (w/Foldable Rops)in (mm)
91.7(2330)
Min ground clearance in (mm)
13.4 (340)
Tread Front tire in (mm)
43.1(1095)
Tread Rear tire in (mm)
43.8(1115) /47.1(1195) /50.8(1290)
Min turning radius (w/brake. 4WD disengaged) feet (m)
8.2(2.5)
Wheelbase in (mm)
63.3(1610)
Lift control type
Position control
Pump capacity (PS)gpm (l/min)
4.1 (15.6)
3-point hitch
Category I
Pump capacity (main)gpm (l/min)
6.8 (25.7)
System pressure PSI (MPa)
165(16.2)
Litt capacity 24 in behind lift points lbs (kg)
1433(650)
Litt capacity at lift points lbs (kg)
1985 (900)
Tire size Indust. Option Front/Rear
27 x 8.50 -15/15-19.5 R4
Tire size TURF Option Front/Rear
25 x 8.50-14/ 13.6 - 1 6
Tire size AG Standard Front/Rear
7.20-16/11.2-24
