Description

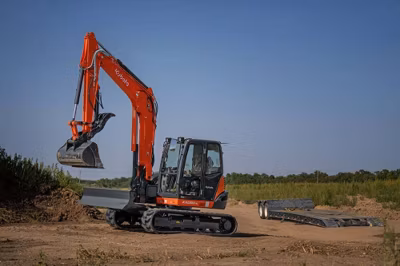

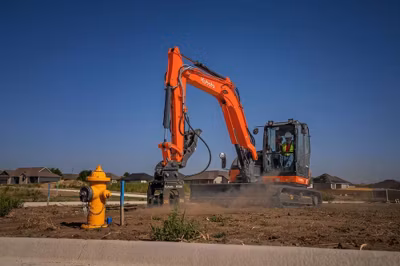

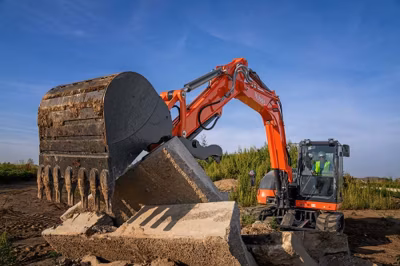

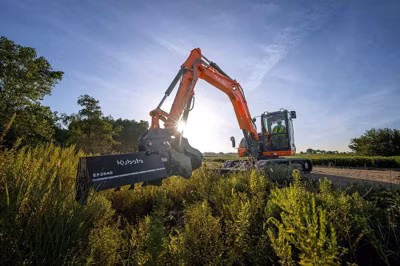

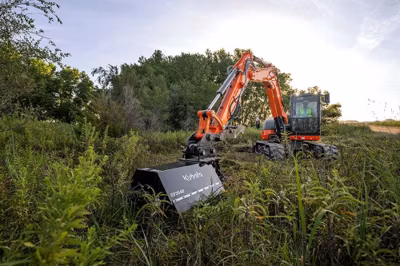

If you’re looking for top-of-the-line performance from your compact excavator, you’ve found what you’re looking for with the Kubota KX080-5. You’ll never struggle to get the job done with the KX080-5’s overpowering 66.6 horsepower produced by Kubota’s V3307-CR-TE5 engine. The KX080-5 is excavation bliss, and the only thing that’s missing is you. Kubota is the world’s #1 selling compact excavator for 20 years.*
Specifications
Manufacturer
Kubota
Model
KX080-5
Year
2026
Category
Excavators
Subcategory
Compact Excavators
Pump Capacity
22.3 ( 84.6 ) Variable x 2 GPM ( LPM )
Auxiliary Hydraulics Flow Rate
26.4 ( 100 ) /14.7 ( 55.8 ) GPM ( LPM )
Hydraulic Oil Reservoir / System
19.8 ( 75 ) /38.6 ( 146 ) gal ( 1 )
Overall Length
21ft 1.9 in ( 6450 )
Overall Height
8ft 4 in ( 2450 )
Overall Width
7ft 2.6 in ( 2200 )
Min Ground Clearance
14.0 in ( 355 )
Crawler Length
9ft 6.2 in ( 2900 )
Blade Width
7ft 2.6 in ( 2200 )
Blade Height
19.7 in ( 500 ) , Angle Blade : 20.1 in ( 510 )
Bucket Breakout Force
14660 ( 6650 ) lbs ( kgf )
Arm Breakout Force
8554 ( 3880 ) lbs ( kgf )

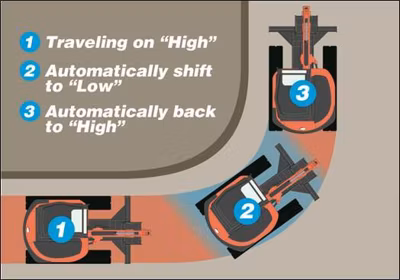

Traveling Speed: High
3.0 ( 4.8 ) mph ( kph )
Traveling Speed: Low
1.7 ( 2.7 ) mph ( kph )
Ground Contact Pressure (Rubber)
5.29 ( 0.372 ) psi , kgf ( cm2 )
Ground Contact Pressure (Steel)
5.35 ( 0.376 ) psi , kgf ( cm2 )
Ground Contact Pressure (Angle Blade Rubber)
5.56 ( 0.391 ) psi , kgf ( cm2 )
Ground Contact Pressure (Angle Blade Steel)
5.60 ( 0.394 ) psi , kgf ( cm2 )
Operating Weight (Rubber)
18520 ( 8400 ) lbs ( kg )
Operating Weight (Steel)
18760 ( 8510 ) lbs ( kg )
Operating Weight (Angle Blade Rubber)
19470 ( 8830 ) lbs ( kg )
Operating Weight (Angle Blade Steel)
19620 ( 8900 ) lbs ( kg )
