Description

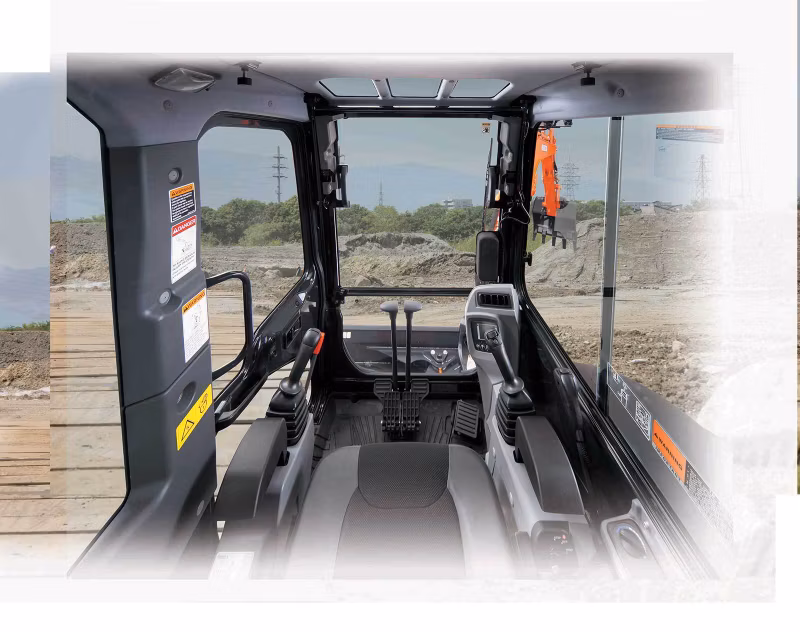

With an available Extended Dipper and optional hydraulic angle blade, the Kubota KX033-4 is unlike any compact excavator you’ve ever seen before. Dig comfortably, with a spacious Cab, and make sure that you can get the job done the right way, every time. Once you sit down behind the controls of the KX033-4, you’ll never want to step away.
Specifications
Manufacturer
Kubota
Model
KX033-4
Year
2026
Category
Excavators
Subcategory
Compact Excavators
Engine Model
Kubota D1703M-DI-E4
Horsepower (gross)
24.8
Displacement (cu in)
100.5 (1647)
Min Ground Clearance
11.4 (290)
Pump Capacity (GPM)
10.5 (39.6) x 2 / 5.5 (20.9) x 1
Auxiliary Hydraulics Flow Rate (GPM)
15.8 (60)
Bucket Breakout Force (lbs)
8138 (3694)
Arm Breakout Force (lbs)
8138 (3694)
Traveling Speed: High (mph)
1.9 (3.0)
Traveling Speed: Low (mph)
2.9 (4.6)
Ground Contact Pressure (psi)
Canopy rubber/steel: 4.365 (0.307) / 4.482 (0.315), Cab rubber/steel: 4.559 (0.321) / 4.676 (0.329), Angle Blade canopy rubber/steel: 4.583 (0.322) / 4.700 (0.331) Angle Blade Cab rubber/steel: 4.776 (0.336) / 4.894 (0.344)
Hydraulic Oil Reservoir / System
11.8 (44.6) / 16.1 (61)
Fuel Reservoir
12.4 (46.9)
Operating Weight lbs (kg)
Canopy rubber/steel: 7420 (3365) / 7616 (3454) Cab rubber/steel: 7742 (3511) / 7938 (3600), Angle Blade canopy rubber/steel: 7781 (3529) / 7978 (3618), Angle Blade Cab rubber/steel: 8104 (3675) / 8300 (3764)
Overall Length
15 ft 6 in (4730)
Overall Width
5'1" (1550)
Crawler Length
6 ft 10.6 in (2100)
Blade Width
5 ft 1 in (1550)
Blade Height
1 ft 1.5 in (345), Angle Blade: 1'3.2" (385)
