Description

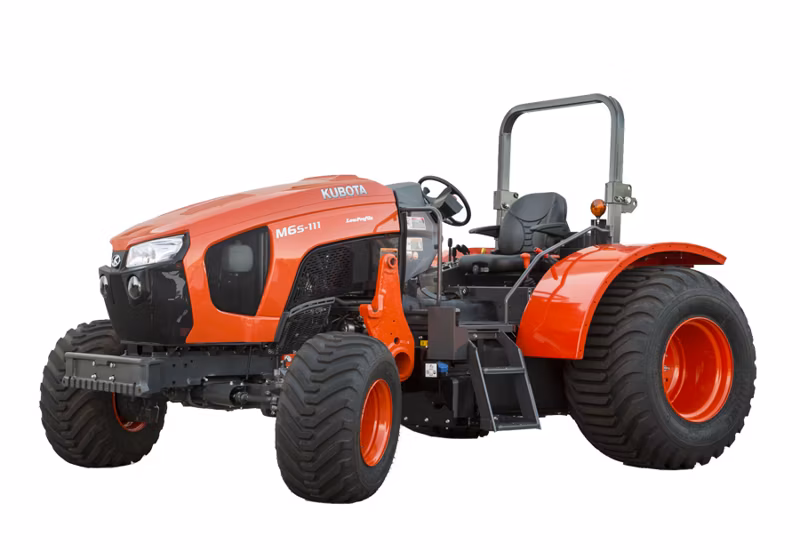

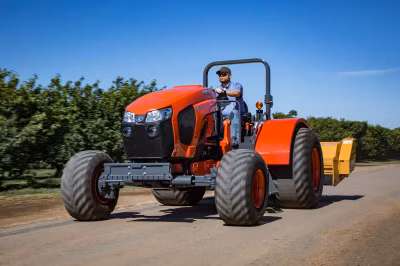

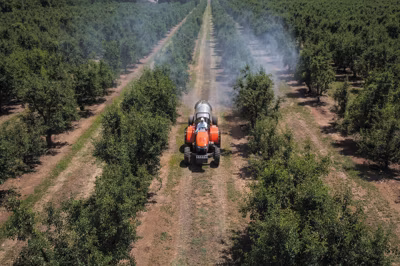

Kubota M Series Low Profile tractors bring you low profile tractors with full-size features and capabilities. Designed specifically for fruit and nut orchard applications, the M Series Low Profile tractors are versatile enough to be used in poultry operations or anywhere low clearance operation is required. M5L and M6L Low Profile tractors are built solid to withstand the toughest orchard conditions and are factory ready to accept a Kubota built front end loader, making Kubota a leader in the low profile specialty tractor market.
Specifications
Manufacturer
Kubota
Model
M6L-111-SDS2
Year
2025
Category
Tractors
Subcategory
Specialty
PTO Clutch
Hydraulic Wet Clutch
PTO Revolution rpm
540/1000
Weight lbs (kg)
7077 (3210)
Type (Make:KUBOTA)

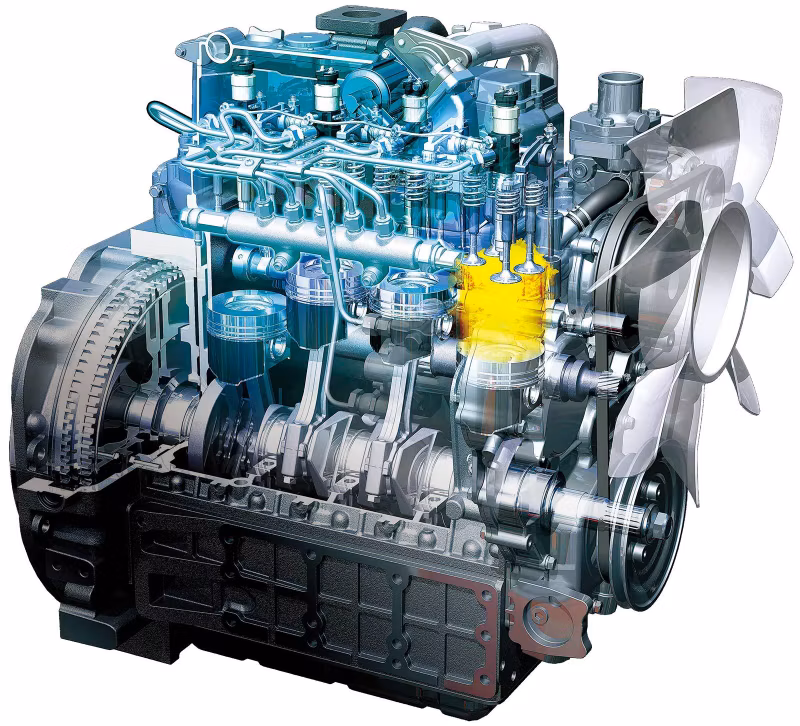

V3800-TIEF4-Direct Injection. Water-cooled 4 Cycle Diesel, Common Rail System, Turbocharger. Interco°ler. DPF, DOC. SCR
Cylinders and displacement cu in, (cc)
4-cylinder, 230 (3769)
Engine gross power (97/68EC)HP (kW)
114.1 (85.1)
PTO power (at rated RPM)HP (kW)
95 (70.8)
Alternator Amp
80
Rated engine speed rpm
2600
No. of Speeds Standard
F32 R32
No. of Speeds Creep (opt.)
F48 R48
Shuttle
Electro-hydraulic
Traveling Speed mi/h(km/h)
0.86 - 18.56 (1.39 - 29.87)
Clutch
Hydraulic Wet Clutch
Rear wheel brake
Hydraulic Wet Disk Type
Mechanical differential lock
Front / Rear
Fuel Tank Capacity gal (l)
46 (175)
Wheel base in (mm)
95.9 (2435)
Minimum ground clearance in (mm)
12.2 (310)
Tread Rear in(mm)
63.8, 66.5, 70.9, 74.4, 78.7 (1620, 1690, 1800, 1890, 2000)
Overall length in(mm)
163.2 (4145)
Overall height (BOPS unfolded) in (mm)
89.4 (2270)
Overall widthin (mm)
83.5 (2120)
Turning radius w/o brake ft (m)
14.8 (4.5)
Tread Front in (mm)
60.2 (1530)
Category
ll
Type
Open-Center
Draft control
Top Link Draft Sensing
Lift capacity at 24 in behind lift point (OECD) lbs (kg)
3858 (1750), 4795 (2175) with 1 assist cylinder (option)
Lower link
Telescopic
Rear remotes
2 standard (3rd & flow control valve optional)
Pump output (remote)gal/min(l/min)
17.6 (66.6)
Wheel drive
4WD
Hood
Full-open
Standard tiresFront
9.5 — 20
Standard tires Rear
16.9 — 24
