Description

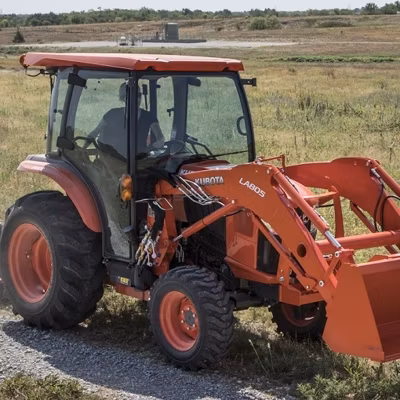

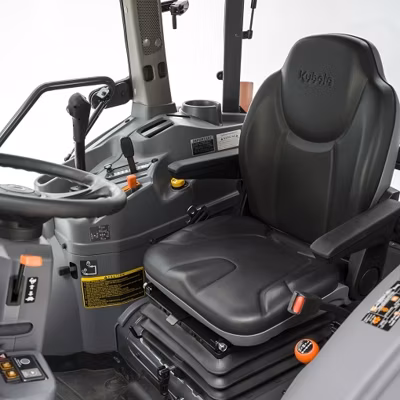

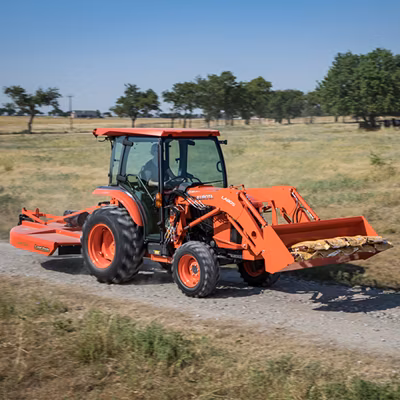

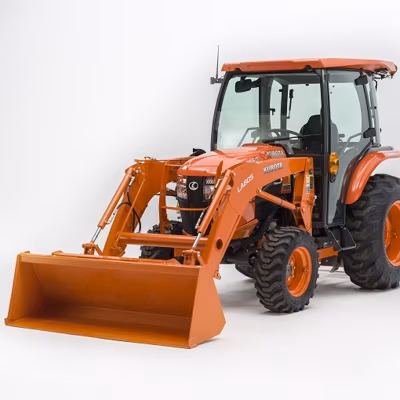

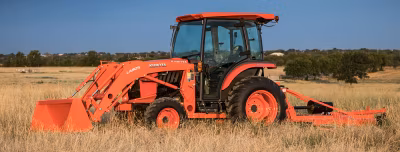

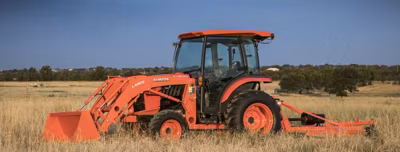

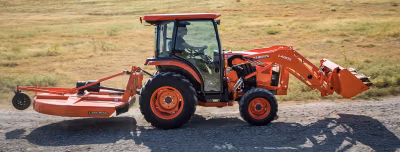

The NEW L3560 Limited Edition Cab Tractor provides unmatched industry leading features and comfort at an affordable price. As the total package, enjoy comfort in the deluxe, Grand L factory-installed Cab while optimizing productivity with Kubota's best in class HST Plus Transmission and many other industry-leading features the L3560HSTC Limited Edition has to offer.
Specifications
Manufacturer
Kubota
Model
L3560HSTC Limited Edition(4WD, Cab)
Year
2025
Category
Tractors
Subcategory
Compact
PTO Revolution
1 speed: 540 rpm
PTO Type
Independent
PTO Revolution one
1 speed: 2000 rpm
Weight lbs (kg)
3880 (1760)
Type
Direct injection, vertical, water-cooled 4-cycle diesel
Bore & stroke in (mm)
3.4 X 4.0 (87 X 102.4)
Rated speed rpm
2600
Battery
12V, RC: 133 min, CCA 582A
Alternator
12V, 60A
Transmission
HST Plus (3 ranges)
Steering
Hydrostatic power steering
Brake
Wet disc type
Engine gross power (SAE J1995) HP (kW)
37.0 (27.6)
Engine net power (SAE J1349) HP (kW)
35.0 (26.1)
PTO power (OECD/CODE2)HP (kW)
28.0 (20.9)
No of cylinders / Aspiration
3 / Natural with EGR
Total displacement cu in (cc)
111.4 (1826)
Fuel tank capacity US gal (t)
13.5 (51)
No. of speeds (at rated engine speed)mph (km/h) H-DS L
Forward L 2.1 (3.4) M: 4.3 (6.9) H: 9.9 (15.9),Reverse L 1.9 (3.0) M: 3.9 (62) H: 8.9 (14.3)
No. of speeds (at rated engine speed)mph (km/h) H-DS H
Forward L 3.6 (5.6) M: 7.1(11.5) H:16.5 (26.5),Reverse L 3.2 (5.1) M: 6.4 (10.3) H:14.9 (23.9)
Overall length (w/o 3P) in (mm)
115.0(2920)
Overall width (Min tread)in (mm)
59.8(1520)
Wheelbase in (mm)
71.1 (1805)
Min ground clearance in (mm)
13.5 (342)
Tread Front tire in (mm)
45.5 (1155)
Tread Rear tire in (mm)
47.2 (1200) / 51.2 (1300) 54.5 (1385) / 58.3 (1480)
Min turning radius (w/brake. 4WD disengaged) feet (m)
8.9 (2.7)
Overall height (top of Cab)
90.6(2300)
Implement pump GPM(l/min)
8.1 (30.4)
Power steering pump GPM(l/min)
4.7 (17.9)
Total hydraulic flow GPM(l/min)
12.8 (48.3)
3-point hitch
Category I
Lift capacity at 24 in behind lift point lbs(kg)
2646 (1200)
Standard tire size Front
7.0-16
Standard tire size Rear
12.4-24
