Description

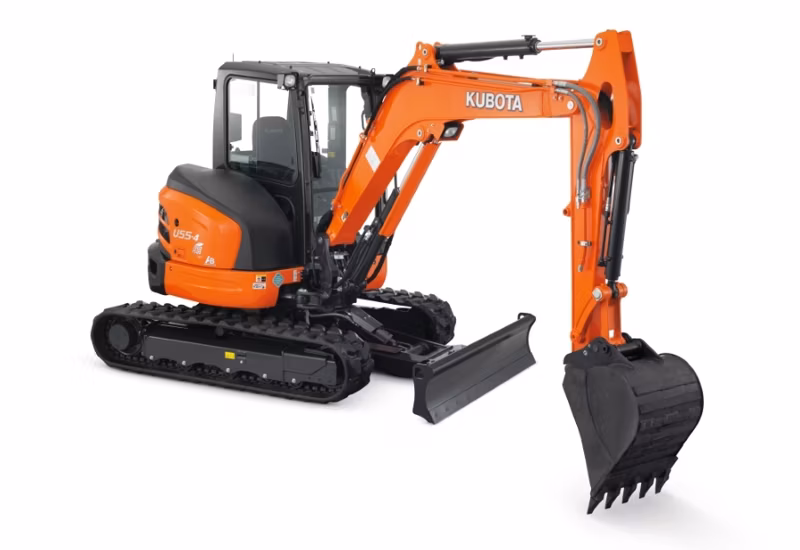

When you have to take on a tough job in a tight space, look no further than the versatile U Series. Kubota U Series excavators offer performance, durability, convenience and comfort to help you tackle tougher jobs in even tighter spaces.
Specifications
Manufacturer
Kubota
Model
U55-4
Year
2025
Category
Excavators
Subcategory
Compact Excavators
Model
U55-4
Type of Rops
Canopy
OPG (Top Guard Level I)*
Cab
Type of tracks
Rubber
Swing system(Unit swing speed)
9.3 rpm
Swing system(Boom swing angle)(Left)
70 degree
Swing system(Boom swing angle)(Right)
55 degree
Blade(Max lift above ground)
17.3" in
Blade(Max drop below ground)
16.1"in
Operating weight (Including operator’s weight @ 175 lbs) (Rubber) (Canopy)
5405 kgf
Operating weight (Including operator’s weight @ 175 lbs) (Rubber) (Cab)
5495 kgf
Operating Weight(lbs)
11915
Rear Swing Clearance
2.5"
Hydraulic Hammer (ft/lb)
750
Pin-On Buckets
12-48"
Quick Attach Buckets
12-48"
Quick Coupler
Mechanical
Spark Arrest Muffler
DPF
Steel Tracks
15.7"
Model
Kubota V2607-CR-E4
Output (SAE J1995 gross)
2200 rpm
Output (SAE J1349 net)
2200 rpm
Displacement
2615 cc
Fuel reservoir
68
Engine Type
V2607-CR-E4 4-cylinder,Tier 4
Horsepower (gross)
47.6
Displacement (cu. in)
159.6
Dimensions(Overall length)
18'0.5" ft in
Dimensions(Overall height)
8'4.4" ft in
Dimensions(Overall width)
6'5.2" ft in
Dimensions(Min ground clearance)
1'0.2" in
Blade(Dimensions)(Width )
6'5.2" ft in
Blade(Dimensions)(Height)
1'4.0" ft in
Overall Length (transport)
18' 0.5"
Overall Height
8'4.4"
Overall Width
6' 5.2"
Maximum Digging Depth
11'10.3"
Maximum Dumping Height
13'2.3"
Hydraulic system(Pump capacity)
56.1/37.0 /min
Hydraulic system(Auxiliary hydraulic flow)(AUX1)
75 /min
Hydraulic system(Auxiliary hydraulic flow)(AUX2)(one)
37 /min
Hydraulic system(Max breakout force)(Bucket)
5070 kgf
Hydraulic system(Max breakout force)(Arm)
2840 kgf
Hydraulic oil (Reservoir)
45
Hydraulic oil (System)
79
Pump Capacity (GPM)
39.4
Auxiliary hydraulic flow(GPM)
19.8/9.8
Bucket Breakout Force (lbs)
11177
Drive system(Travel speed)(Low)
2.8 km/h
Drive system(Travel speed)(High)
4.9 km/h
Drive system(Max traction force)(Low speed)
6567 kgf
Drive system(Tumbler distance)
6'6.3" ft in
Drive system(Crawler length)
8'2.4" ft in
Drive system(Shoe width)(Rubber)
1'3.7" in
Drive system(Ground contact pressure)(Rubber)(Canopy)
0.311 kgf/cm2
Drive system(Ground contact pressure)(Rubber)(Cab)
0.317 kgf/cm2
Maximum Traveling Speed (mph)
1.8/3.1
Ground Contact Pressure(psi)
4.42
