Description

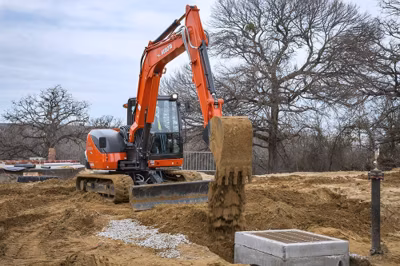

If you’re looking for top-of-the-line performance from your compact excavator, you’ve found what you’re looking for with the Kubota KX080-4. You’ll never struggle to get the job done with the KX080-4’s overpowering 66.4 horsepower produced by Kubota’s V3307-CR-TE-4 engine. The KX0480-4 is excavation bliss, and the only thing that’s missing is you.
Specifications
Manufacturer
Kubota
Model
KX080-4
Year
2025
Category
Excavators
Subcategory
Compact Excavators
Horsepower (gross)
66.6
Displacement (cu. in)
203.3
Min Ground Clearance
14.0in-15.4in (355-390)
Crawler Length
9ft 6.2in (2900)
Pump Capacity (GPM)
19.0-22.3 (72.0-84.6) Variable x ,2 / 17.6 (66.6) Gear x, 1
Auxiliary Hydraulics Flow Rate (GPM)
26.4 (100) / 17.6 (66.6)
Bucket Breakout Force (lbs)
14660 (6650)
Arm Breakout Force (lbs)
8554 (3880)
Traveling Speed: High (mph)
1.7 (2.7)
Traveling Speed: Low (mph)
3.0-3.1 (4.8-5.0)
Ground Contact Pressure (psi)
Rubber/steel: 5.23 (0.367) / 5.35 (0.376), Angle blade rubber/steel: 5.47 (0.385) / 5.60 (0.394)
Blade Width
7ft 2.6in (2200)
Blade Height
1ft 7.7in (500), Angle Blade: 1ft 8.1in (510)
Hydraulic Oil Reservoir / System
19.8 (75) / 35.7 (135)
Fuel Reservoir
30.4 (115)
Operating Weight lbs (kg)
Rubber/steel: 18365-18280 (8330-8290) / 18475-18390 (8380-8340), Angle blade rubber/steel: 19225-19140 (8720-8680) / 19250-19335 (8730-8770)
Overall Length
21ft 1.9in (6450)
Overall Height
8ft 4in (2450)
Overall Width
7ft 2.6in (2200)
Engine Model
Kubota V3307-CR-TE4
